Opis
Acebeam ACE 4
Pametni punjač baterija
4 nezavisna slota za punjenje
.

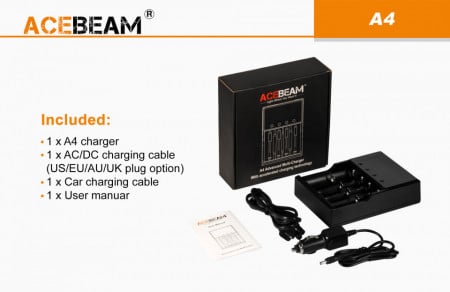

U paketu se dobija
Punjac ACE-4 x 1
kabl za 220v x1
kabl za auto(auto-punjac) x1
Kutija(kartonsko pakovanje)
Podržane hemije su: Li-Ion,IMR, Ni-Cd, Ni-MH,LiFePO4
Tipovi baterija koji se mogu puniti:
Li-ion LiFePO4, IMR : 10440 ,14500, 16340, 16500, 17500, 17650, 17670, 18350 ,18490, 18500, 18650, 18700, 15550, 16650 ,20700 ,21700 ,
Ni-MH Ni-Cd : A ,AA ,AAA ,SC
Tehnički podaci:
Ulaz: 100-240V (AC), 50/60Hz, 600mA (Max)
12V-24V(DC) 2000mA(max)
Izlaz: 4.2V/3.65V/1.5V 500mA x 4/1000mA x 4
Veličina: 145 x 104 x 39,5 (duljina x širina x visina)
Težina: 260g
Radna temperatura: 5%(0℃)-90%(40℃)
Kako napuniti baterije
1. Uključite kabl za napajanje u standardnu AC utičnicu ili uključite adapter za automobil u upaljač za cigarete u vašem vozilu. Acebeam punjač će automatski proveriti vrstu i stanje baterije.
2. Ako punjač stoji prazan 30 sekundi bez umetanja baterija ili pritiska na prekidač, pokrenut će funkciju štednje energije i osvjetljenje LCD zaslona će se smanjiti.
3. Obrnutim umetanjem baterije ili pogrešnim radom, na LCD ekranu će se prikazati "Err" (Greška). Višestruki punjač A4 automatski će identifikovati tip baterije Li-ion/ni-MH/Ni-CD.
LiFePO4 baterija se može odabrati ručno. Zadana struja je 500mA, 1000mA je dostupno ako je potrebno.
4. Dugme A/B/C/D koji odgovara zasebnom slotu za punjenje.
Kratki pritisak 1S: Odaberite između struje punjenja 500mA ili 1000mA.
Dugi pritisak 5S: Odaberite način punjenja između Li-ion i LiFePO4 vrste baterija.
5. Radi sigurnosti, višestruki punjač A4 automatski će se prestati puniti kada dostigne 12 sati. Izvadite sve baterije i isključite napajanje kada se punjenje baterije završi.
Pažnja
1. Za svoju zaštitu i zaštitu ćelija koje se pune, koristite višestruki punjač A4 samo prema upustvu.
2. Isključite napajanje kada je punjenje završeno.
3. Ne pokušavajte istovremeno puniti naizmeničnom strujom(220v) i strujom iz automobila.
4. Nemojte pokušavati rastaviti ili modificirati A4 višestruki punjač ili ga koristiti u druge svrhe.
5. Kao električni aparat, držite punjač izvan dohvata djece.
.
Specifications:
Input: 100-240V(AC), 50/60Hz, 600mA(Max)
12V-24V(DC) 2000mA(Max)
Output: 4.2V/3.65V/1.5V 500mA x 4/1000mA x 4
Size: 145 x 104 x 39.5(Length x Width x Height)
Weight: 260g
Operating Temperature: 5%(0℃)-90%(40℃)
(full load in normal working conditions)
Product ratings
Compliant Standards: TUV GS FCC CE C-TICK CB ROHS
How to charge battery cells
1. Plug the power cable into a standard AC outlet or plug the car adapter into the cigarette lighter in your vehicle. The Acebeam charger will automatically check the battery type and condition.
2. If the charger stands empty for 30 seconds without inserting batteries or pressing the switch button, it will start the energy saving function and the brightness of LCD screen decreased.
3. Reverse insertion of a battery or the wrong operation, will cause the LCD screen to display "Err" (Error). The A4 multi charger will automatically identify between Li-ion/ni-MH/Ni-CD battery type. A LiFePO4 battery could be selected manually. Default current is 500mA, 1000mA is available if needed.
4. Button A/B/C/D corresponding to the separate charging slot.
Short press 1S: Select between charging current 500mA or 1000mA.
Long press 5S: Select the charging mode between Li-ion and LiFePO4 battery types.
5. For safety, the A4 multi charger will automatically stop charging when it reaches 12 hours. Remove all batteries and unplug the power when battery charging is completed.
Attention
1. For your protection and that of the cells being charged, use the A4 multi charger only as instructed.
2. Disconnect the power supply when charging is completed.
3. Do not attempt to charge with AC and car power sources at the same time.
4. Do not attempt to dismantle or modify A4 multi charger or use it for other purposes.
5. As an electrical appliance, keep the charger out of reach of children.
